615006138521
Manufacturer:
Wurth Electronics
Mfr.Part #:
615006138521
Datasheet:
Description:

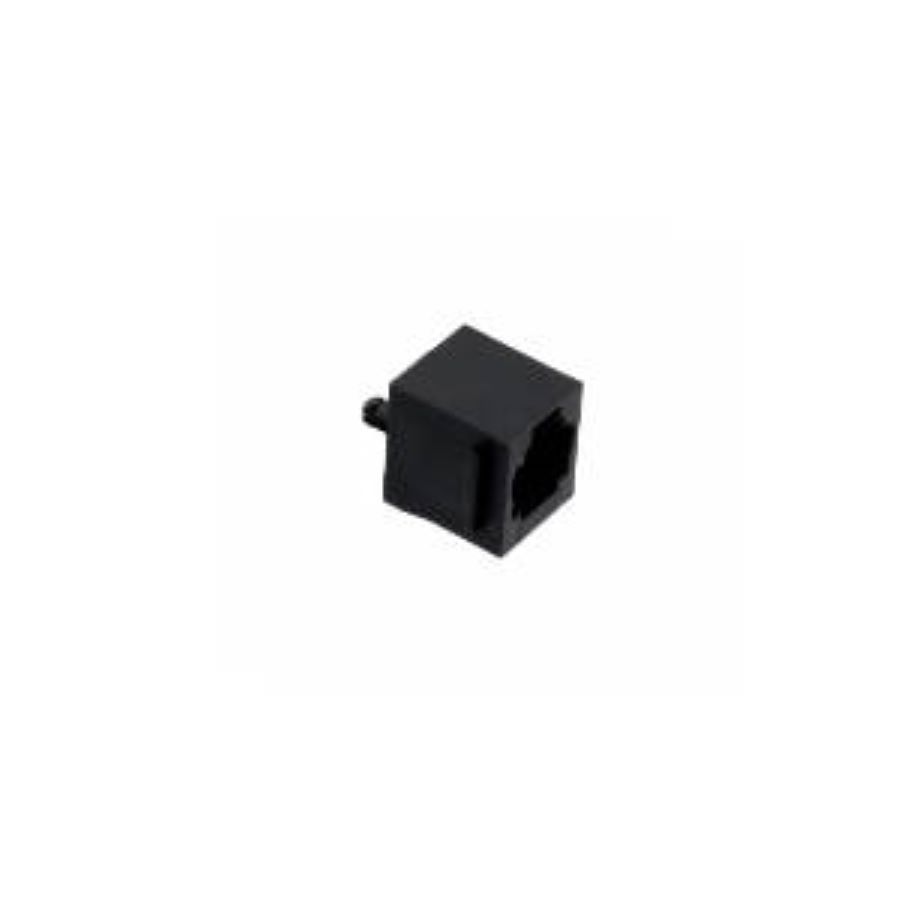

Modular / Ethernet Connectors Through Hole RJ25 Female Current Rating:1.5 A Voltage Rating:120 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 120 V |
| Length | 15.7 mm |
| Width | 18.8 mm |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 120 V |
| Height | 15.8 mm |
| Packaging | Tray |
| Voltage Rating | 120 V |
| Depth | 15.88 mm |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 120 V |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 6 |
| Direction(Counting Sequence) | User Selectable |
| Connector Type | Socket |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | PBT |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Mounting Angle | Straight |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ25 |
| Number of Positions/Contacts | 6P6C |
Stock: 1971
Distributors
pcbx
pcbxUnit Price$0.44411
Ext.Price$0.44411
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.44411 | $0.44411 |
| 10 | $0.43677 | $4.36770 |
| 25 | $0.42867 | $10.71675 |
| 50 | $0.42072 | $21.03600 |
| 100 | $0.40376 | $40.37600 |
| 300 | $0.39522 | $118.56600 |
| 500 | $0.38687 | $193.43500 |
